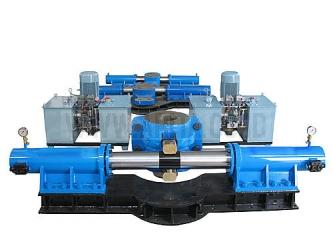

Piston Fork Hydraulic Steering Gear
Description
Piston Fork Hydraulic Steering Gear
LORI can supply clients different types steering gears. We have more than 20 years experiences.
The fork-shifting rudder pushing device is making the piston do the reciprocating movements in the cylinder,then through the fork-type tiller output the rudder torque.The cylinder we adopted to use V-type rudder seal ring. This rudder-pushing device has features of simple structure,reliable operation,easy maintenance and well output torque.
CCS,ABS,BV,GL,,LR,DNV,RINA,NK and other Classification Certificates are available.
Any questions or inquiries please send email to kristiyanto@arita.co.id
Piston Fork Hydraulic Steering Gear Technical Data Sheet:
| Torque (KN.M) | Rudder shifting time (S) |
| 10-16 | ≤12/20/28 |
| 25-30 | ≤12/20/28 |
| 30-40 | ≤12/20/28 |
| 50 | ≤12/20/28 |
| 63 | ≤12/20/28 |
| 75-100 | ≤12/20/28 |
| 125-160 | ≤12/20/28 |
| 200 | ≤12/20/28 |
| 250-320 | ≤20/28 |
| 350 | ≤20/28 |
| 400-500 | ≤28 |
| 500-600 | ≤28 |
| 700 | ≤28 |
| 800 | ≤28 |
| 1000 | ≤28 |
